The Condo API can be embedded into third-party surfaces and used as a backend
in mobile, web and desktop applications.
Such integrations often require the ability to authorize in the Condo API through an external partner service.
Condo allows adding this authorization using the Open ID Connect protocol.
Authorization in Condo via OIDC
To add authorization to Condo through your service using OIDC,
you need to implement this protocol on your backend, thus becoming an OIDC authorization provider for the Condo API.
We strongly recommend not implementing the protocol yourself, but
using one of the certified libraries (see the Certified OpenID Provider Libraries section).
After that, you need to provide the Condo team with the following set of parameters:
| Parameter Name | Parameter Description | Example |
|---|---|---|
| userInfoURL | The API endpoint of your server that will return user information based on the received token. | https://my-app.example.com/api/oidc/me |
How OIDC Authorization Works
After registering you as an authorization provider, we will give you a provider name (
provider),
used in the authorization endpoints, and a client ID (client_id).You can then start the authorization process by navigating to an endpoint like /api/auth/:provider?user_type=...&client_id=...&access_token=...
To authorize management company employees, you need to pass the query parameter
user_type=staff, for residents use user_type=resident.This endpoint will process your request and redirect you to /api/auth/:provider/callback,
where the actual authorization will take place.
If the authorization is successful, the callback endpoint will redirect you to /, setting the
set-cookie header with the keystone.sid parameter,
which is necessary for making further API requests.About the access_token
To start the authorization, in addition to
client_id and user_type, you must provide us with an OIDC access_token from your service.
Using this token, the Condo API will make a request to the userInfoURL you provided to get user information.
This token is issued by your service just before authorization.
It can be short-lived and have minimal access rights necessary to obtain information about the current user.The userInfo Structure
Special attention should be paid to the
userInfoURL endpoint,
as it is responsible for creating and synchronizing users in the Condo platform with the partner's service.At a minimum, for correct user linking,
userInfo must return the user ID in your service,
their phone number, and name. Email can be provided additionally if available.json{ "sub": "cmd30383l000q07jy8cqo2zd7", "phone_number": "+79990001234", "name": "John Doe" }
If users in your service can exist without a confirmed phone or email,
you must also report the verification status of that phone or email.
json{ "sub": "cmd30383l000q07jy8cqo2zd7", "phone_number": "+79990001234", "phone_number_verified": true, "email": "j.doe@example.com", "email_verified": false, "name": "John Doe" }
The phone number must be transmitted in the normalized E.164 format (+7XXXYYYYYYYY).
In the examples above, the field names correspond to the generally accepted naming conventions for fields in OIDC.
However, if you already have a ready-made OIDC mechanism (or a similar mechanism that returns user information by token)
where these fields are present in a different form, we can additionally configure a remapping of your fields to the ones specified above.
About Phone Verification
During the user's first authorization, the Condo API will require additional confirmation of the phone number
provided by you from
userInfoURL. In this case, /api/auth/:provider/callback will return a corresponding error:
To verify the phone, you need to execute 2 anonymous GraphQL queries to the Condo GraphQL API:
startConfirmPhoneAction to send an SMS confirmation code to the specified phone, and completeConfirmPhoneAction
to verify the phone with the received code.After that, you need to repeat the authorization request, additionally passing the
confirm_phone_action_token parameter,
obtained from the startConfirmPhoneAction mutation and confirmed in the completeConfirmPhoneAction mutation.Let's Go Through the Entire Authorization Process
For all requests in the example below, we will use:
test-sdk- the issued provider nametest-client-id- the issuedclient_id

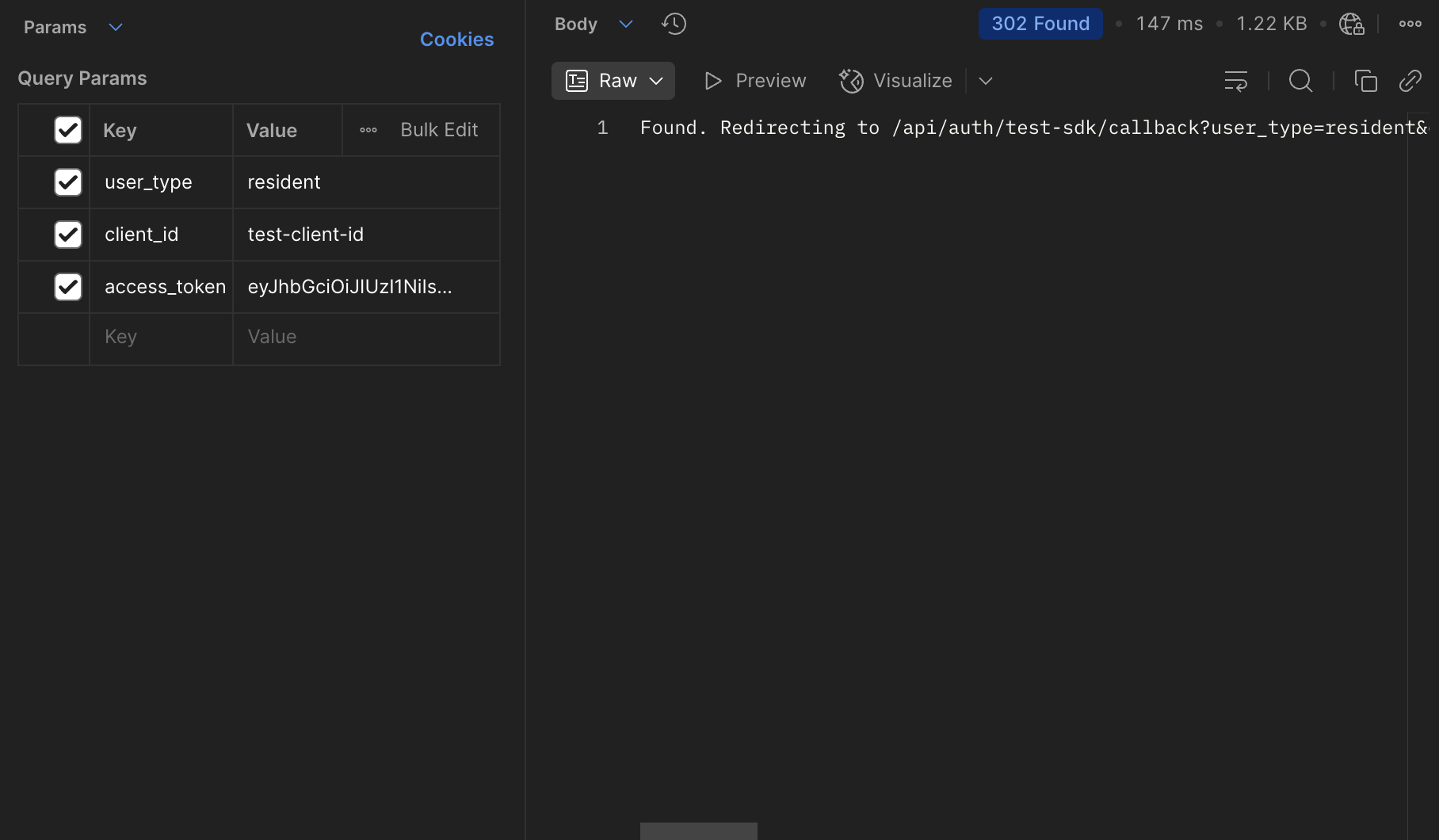

To start authorization, we get the OIDC token from your service and go to the endpoint /api/auth/test-sdk?user_type=resident&client_id=test-client-id&access_token=...,
after which we get a redirect to the callback:

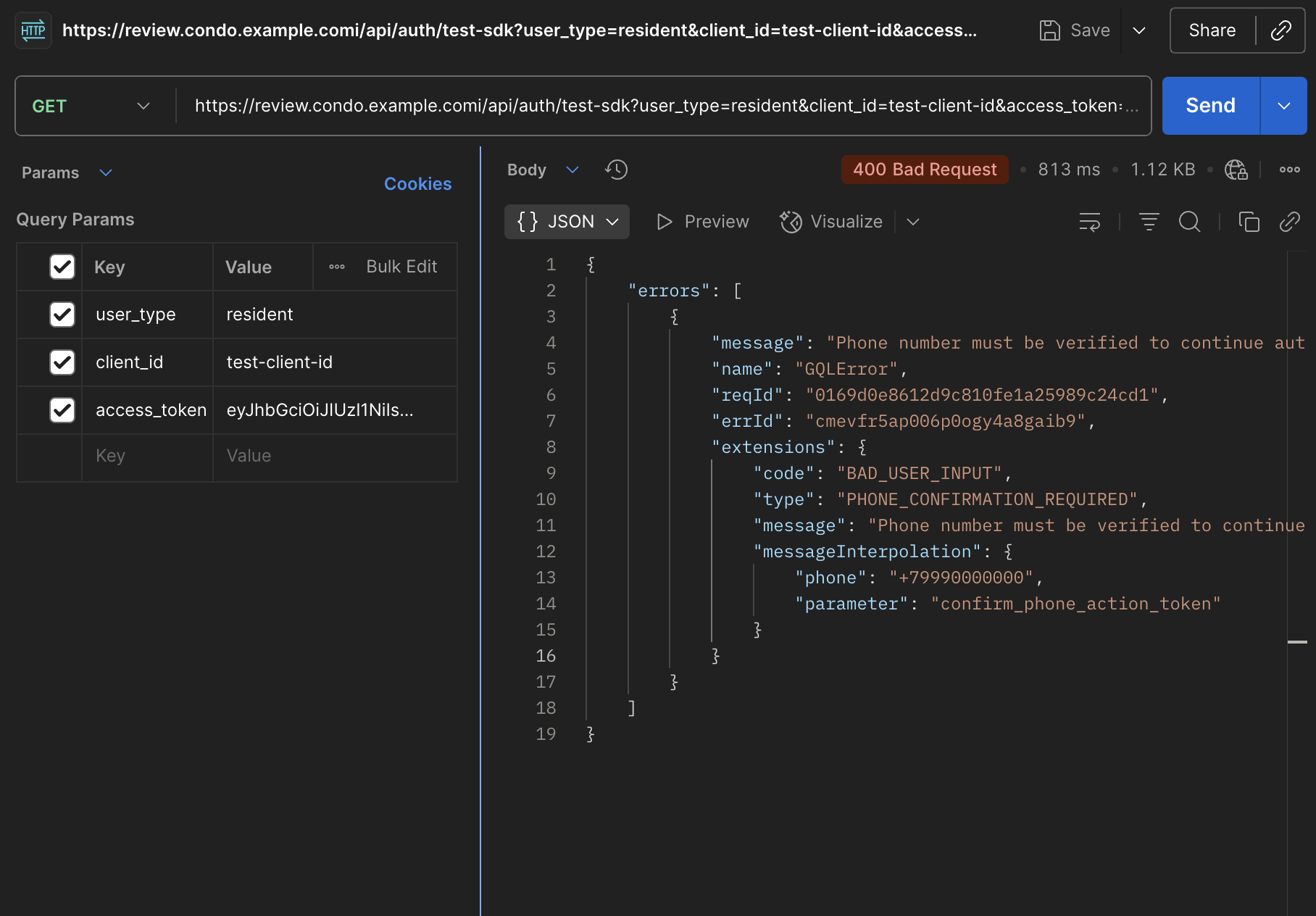

We go to the callback and get an error that the phone needs to be confirmed:

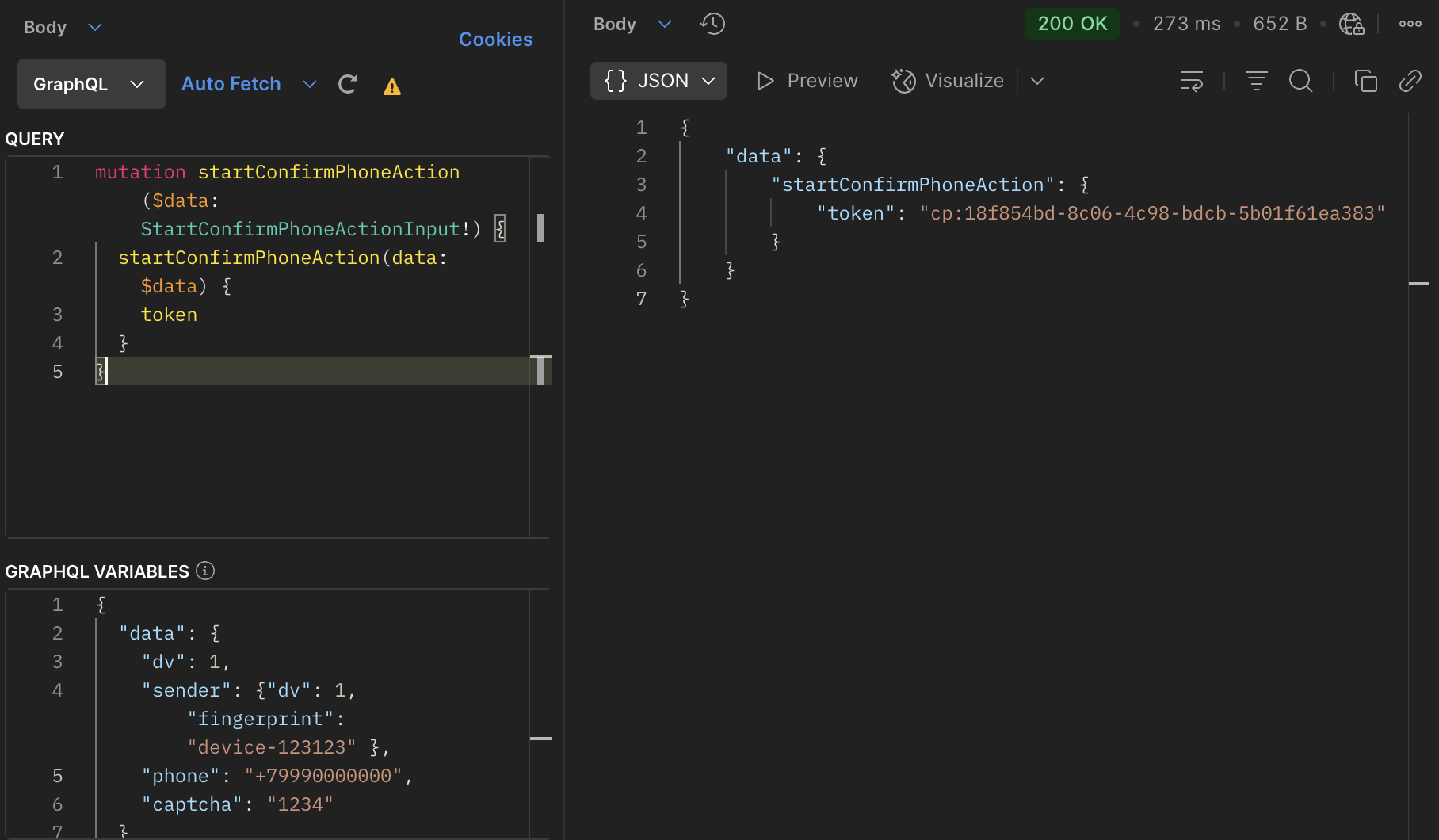

We execute the
startConfirmPhoneAction GraphQL query to send a confirmation code and get a confirm_phone_action_token:

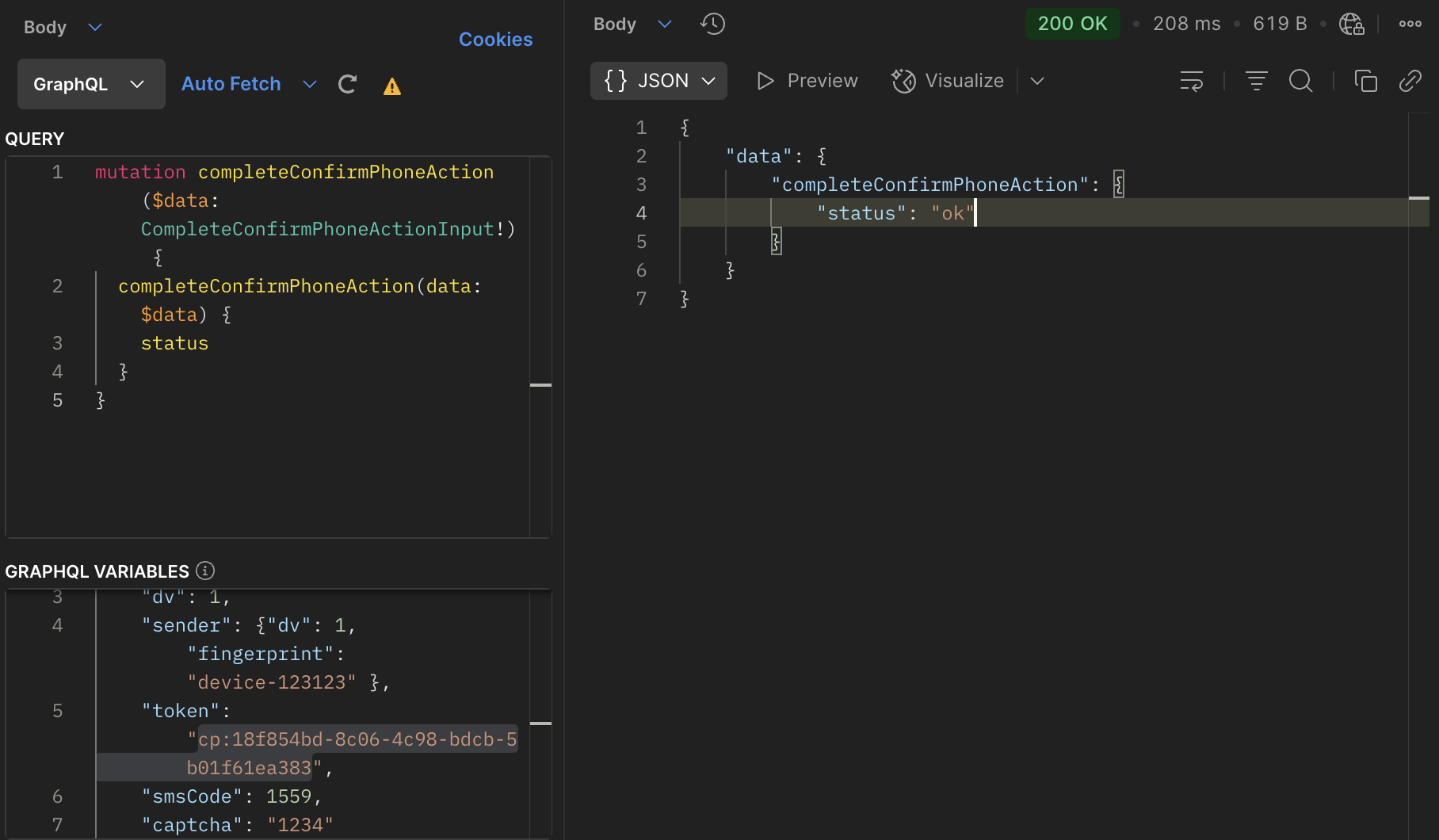

We execute the
completeConfirmPhoneAction GraphQL query to confirm the phone:

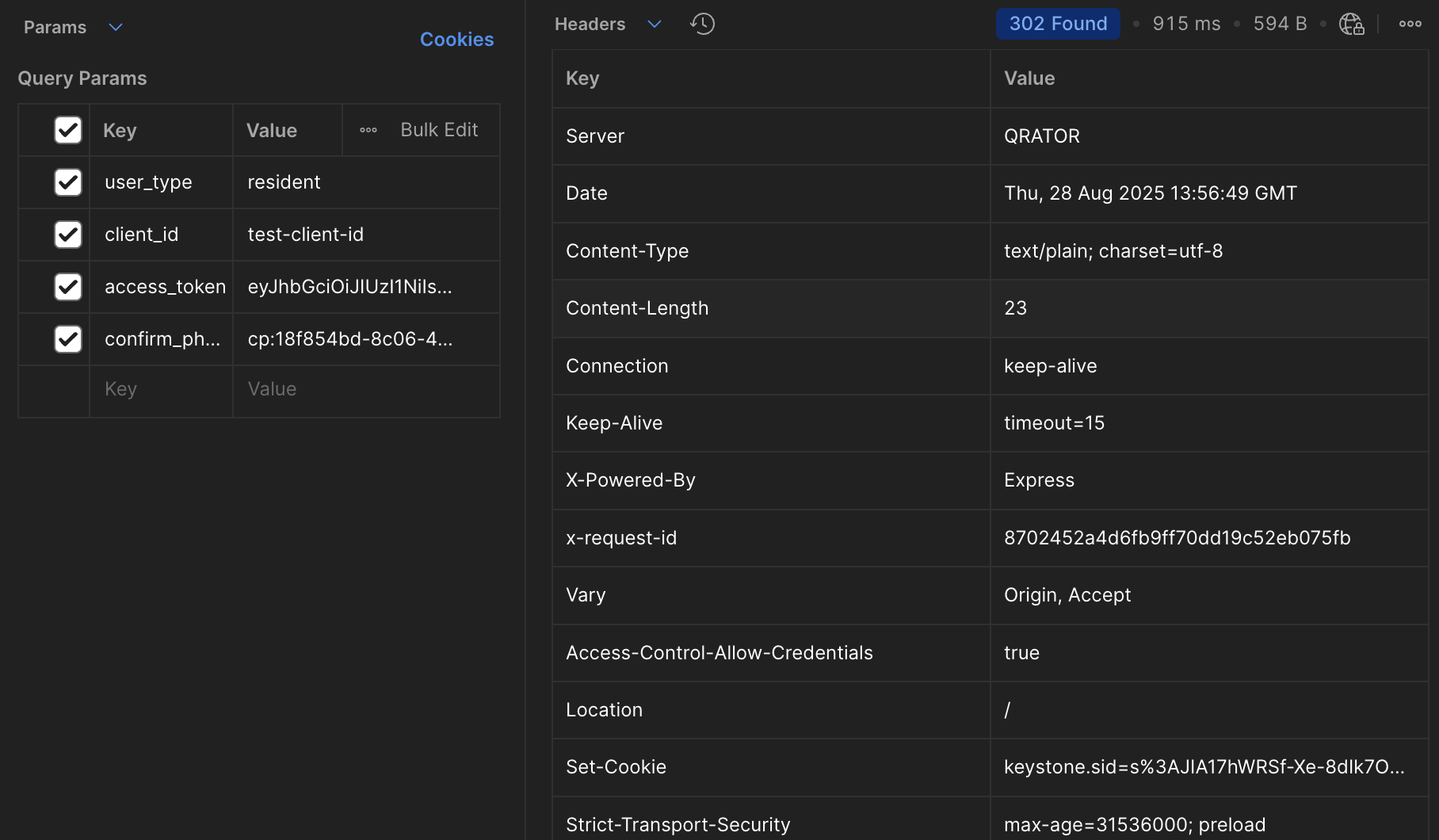

We go again to /api/auth/test-sdk?user_type=resident&client_id=test-client-id&access_token=...&confirm_phone_action_token=cp:18f854bd-8c06-4c98-bdcb-5b01f61ea383,
get a redirect to the callback, and then to /.

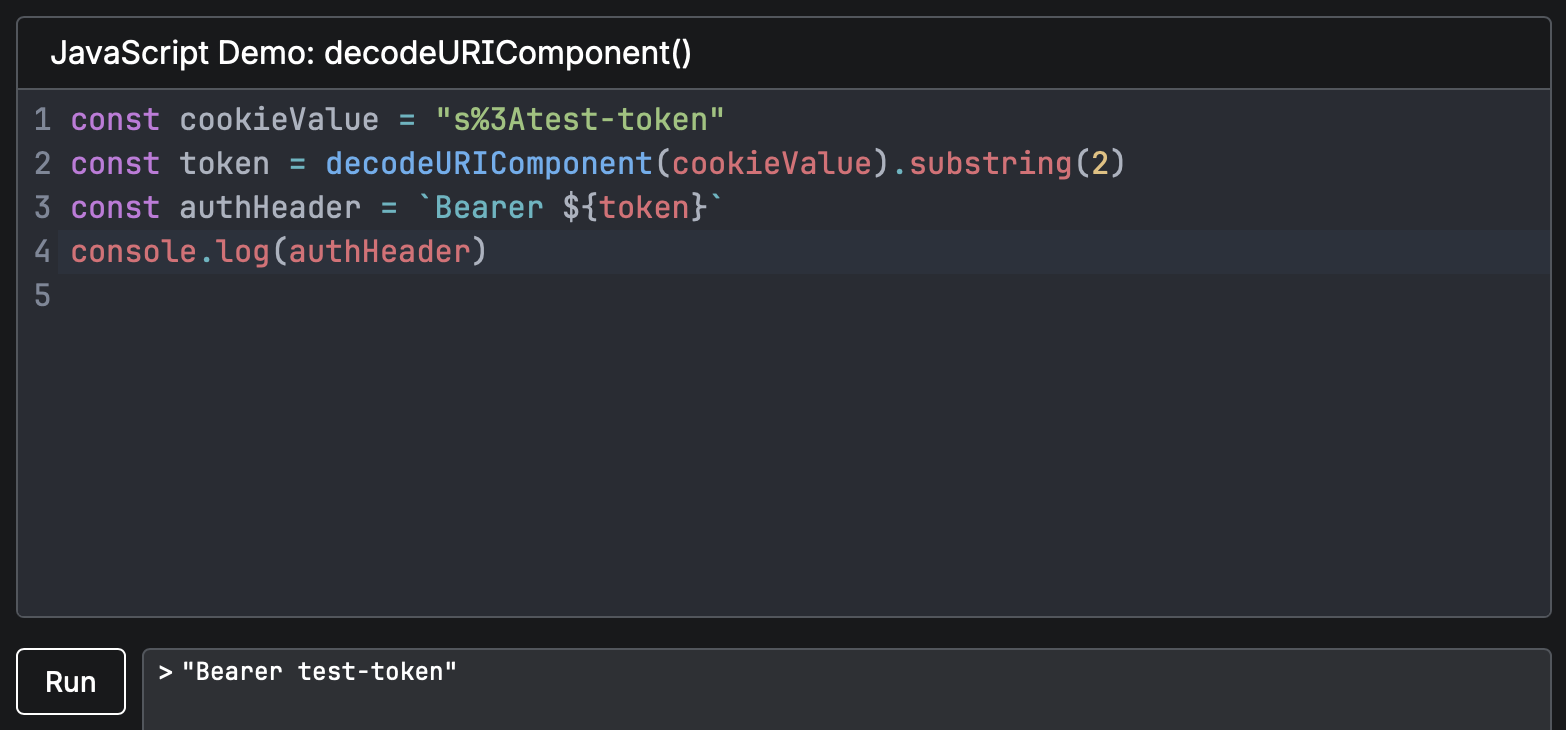

Getting the User Token from the set-cookie Header
For security purposes, we pass the user's authorization token not in plain text, but as a
keystone.sid cookie.
To get the token from it, you first need to decode the value using decodeURIComponent,
and then remove the s: prefix. After that, the resulting token can be used as a Bearer token in subsequent requests:
Browser Implementation Specifics
When implementing this integration in a browser environment, you may encounter the following problems:
- CORS policy does not allow you to execute GraphQL queries from a third-party domain;
- The
set-cookieheader is not available to the browser client.
To resolve them, it is recommended to proxy the
/admin/api GraphQL endpoint, as well as the /api/auth/:provider and /api/auth/:provider/callback you received,
through your backend.The Condo API has additional restrictions on the frequency of sending SMS and authorizations from a single IP address (no more than 10 per hour).
To bypass these restrictions when using a proxy server, use the "IP Proxying" guide.
